Xsel pH
Guarantee3 Years

Xsel pH

The simplicity and efficiency of Xsel with integrated pH regulation.

  • Performance
  • Reliability


Xsel pH maintains the ideal pH due to it’s automatic pH- and pH+ dosing.

Xsel pH is a very simple solution for treatment and disinfection by salt

One button is enough to regulate the production of chlorine for the treatment of pools up to 160 m³.

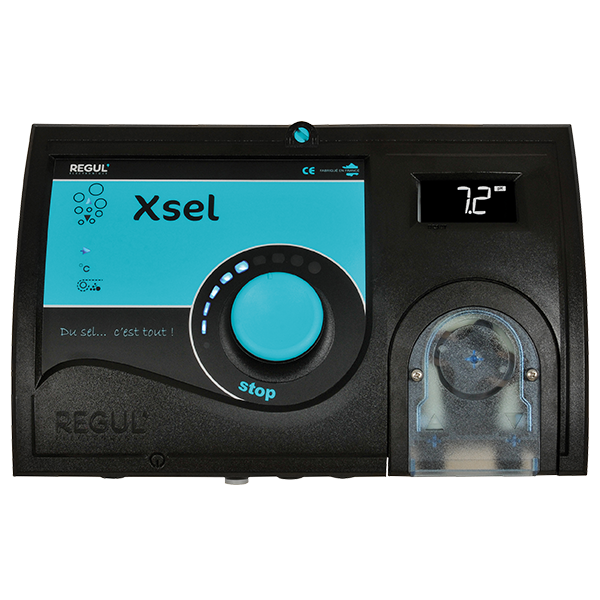

All essential information clearly displayed :
• Production level

• pH
• Water temperature for overwinter mode
• Water circulation in the cell
• Cover position
• Production direction


Free yourself from the constraints of water treatment with the salt electrolyser, Xsel pH.

Equipped with auto cleaning cell using polarity inversion.

To ensure an optimal treatment, Xsel pH has many functions : auto cleaning cell using polarity inversion, system remembers the polarity setting to preserve the life of the cell, reduced chlorine production when pool cover is closed in order to protect the equipment (liner, component ...), automatic overwintering mode...


All our devices are tested and validated at each step of the manufacturing process. Each device has a unique serial number to assure traceability. REGUL’Électronique guarantees its devices and pledges the best after sales service.

Technical data sheet

Volumes of treatment :
up to

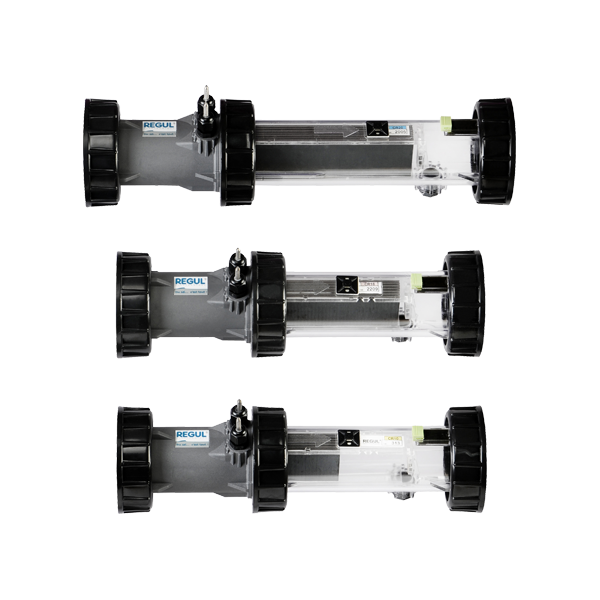

50 m3 with CR10 cell, up to 70 m3 with CR16 cell and up to 100 m3 with CR20 cell, up to 160 m3 with CR20 cell (allow a margin of 20% depending on pool use and the climatic region of the pool).

  • Capacity of treatment0 to 160 m3
  • Chlorine production10,7g/h -24g/h
  • Transparent cellYes
  • Circulation detectionYes
  • Fuse protectionYes
  • Roller shutter functionYes
  • Test functionYes
  • Length of the cell280-330 mm
  • Power supply240 V~
  • Power consumption50 W to 100 W depending on model
  • Salt concentrationMinimum: 3,5 g/l - Maximum: 30 g/l
  • PH- injectionYes
  • PH+ injection Yes
  • PH functionYes
  • Maximum flow30 m3/h
  • Lifespan of cellMinimum 5000 hours
  • CaseIP53 - Tropicalised circuit board
  • Production adjustment0 to 100%
  • Dimensions (LxHxD)285 x 185 x 135 mm
  • Temperature measurementYes
