Xsel Redox
Guarantee3 Years

Xsel Redox

The simplicity and efficiency of Xsel with redox control

Simplicity

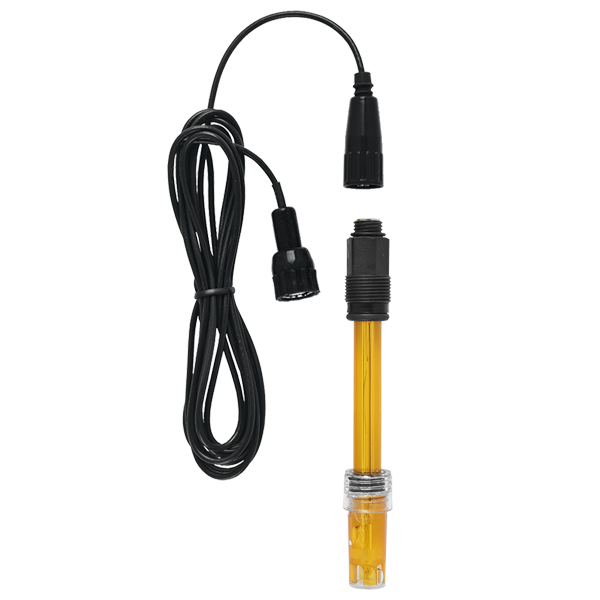

It allows the control of chlorine production by measuring the redox to maintain properly disinfected water.
In the case of a roller shutter it is necessary, that the XSEL Redox stops the production of chlorine when the shutter is closed and the redox value reached in order to protect the equipment (liner, component ..) of any super chlorination.

Xsel Redox is a very simple solution for treatment and disinfection by salt.

One button is enough to regulate the production of chlorine for the treatment of pools up to 160 m³.

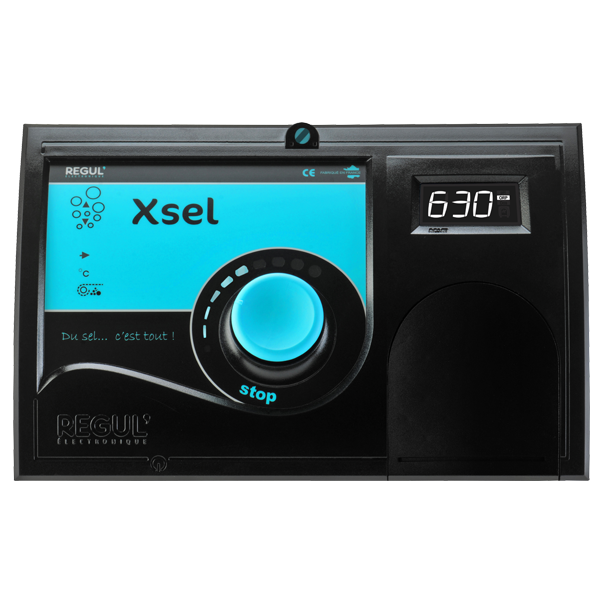

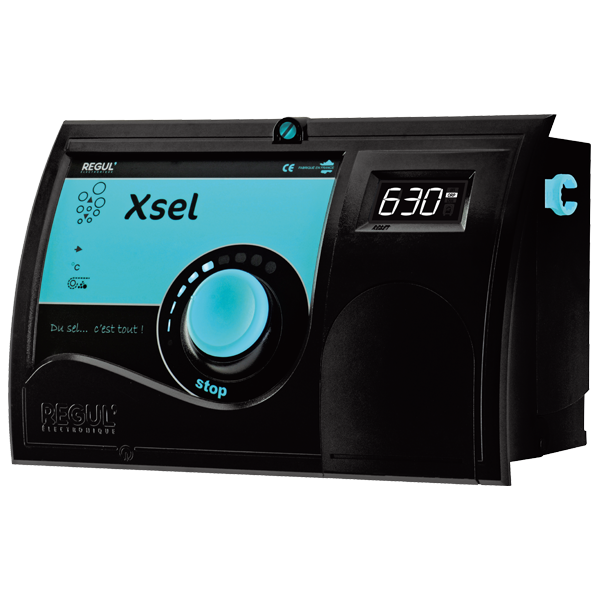

All essential information clearly displayed :
• Production level

• Redox value
• Water temperature for overwinter mode
• Water circulation in the cell
• Cover position
• Production direction

Serenity

Free yourself from the constraints of water treatment with the salt electrolyser, Xsel Redox.

Equipped with auto cleaning cell using polarity inversion.

To ensure an optimal treatment, Xsel Redox has many functions : auto cleaning cell using polarity inversion, system remembers the polarity setting to preserve the life of the cell, reduced chlorine production when pool cover is closed in order to protect the equipment (liner, component ...), automatic overwintering mode...

Reliability

All our devices are tested and validated at each step of the manufacturing process. Each device has a unique serial number to assure traceability. REGUL’Électronique guarantees its devices and pledges the best after sales service.

Technical data sheet

Volumes of treatment :
up to

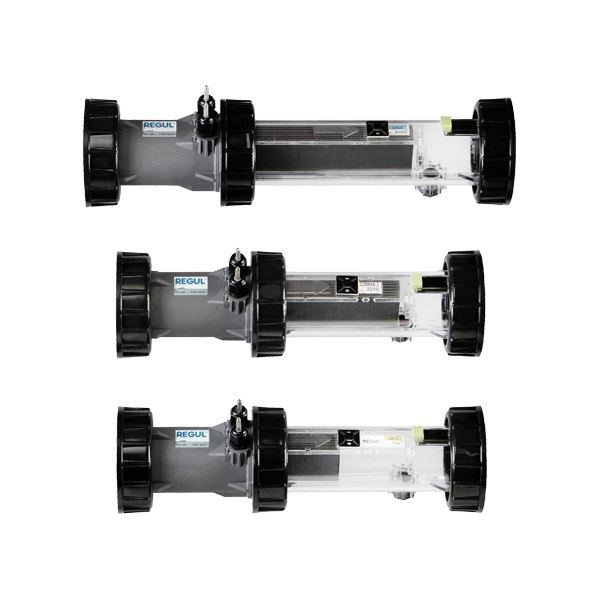

50 m3 with CR10 cell, up to 70 m3 with CR16 cell and up to 100 m3 with CR20 cell, up to 160 m3 with CR20 cell (allow a margin of 20% depending on pool use and the climatic region of the pool).

  • Dimensions (LxHxD)285 x 185 x 135 mm
  • Capacity of treatment0 to 160 m3
  • Circulation detectionYes
  • Fuse protectionYes
  • Roller shutter functionYes
  • Length of the cell280-330 mm
  • Power supply240 V~
  • Power consumption50 W to 100 W depending on model
  • CaseIP53 - Tropicalised circuit board
  • Lifespan of cellMinimum 5000 hours
  • Maximum flow30 m3/h
  • Production adjustment0 to 100%
  • Redox functionYes
